1. Product Introduction of the 300w waterproof outdoor led flood light.
The 300W LED flood light is designed with the latest technology for optimal performance and is ideal for signs, accent architecture, flags, parking lots, and landscape lighting. LED technology has a longer life expectancy than fluorescent lighting, and emits no UV rays, contains no mercury, and does not flicker. This high quality 300w LED flood light produces a light intensity around 45,000 lumens. It can replace a 1000W metal halide fixture and can save up to 70% in energy costs3. The 300W FXLED® by RAB Lighting can replace 1000W metal halide with only 300W of LED3. It has up to 132 lm/W and can save up to 70% in energy costs.

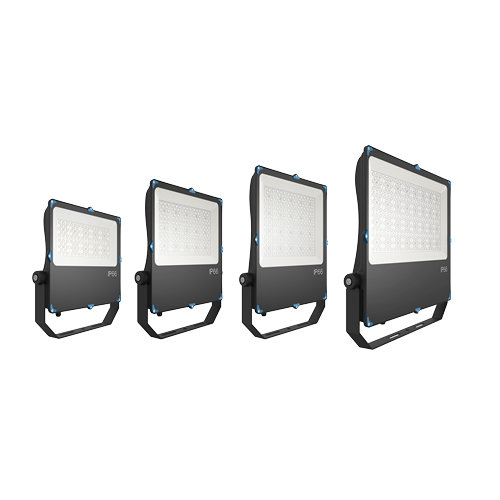

2.Product Parameter (Specification) of the IP66 waterproof outdoor led flood lights.
Item No. |
FL7100 |
FL7150 |
FL7200 |
FL7300 |
Product Model |
LM-FLG394P100Y07-WW/NW/CW |
LM-FLG445P150Y07-WW/NW/CW |
LM-FLG497P200Y07-WW/NW/CW |
LM-FLG503P300Y07-WW/NW/CW |
Size(mm) |
394*394*56mm |
445*392*56mm |
497*392*56mm |
503*545*64mm |
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
Color(CCT) |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
Luminous |
15000lm |
22500lm |
30000lm |
45000lm |
LED Quantity |
120pcs |
180pcs |
240pcs |
384pcs |
Led Type |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
CRI |
>80Ra |
>80Ra |
>80Ra |
>80Ra |
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
Beam Angle |
15°/30°/60°/90°/120° |
15°/30°/60°/90°/120° |
15°/30°/60°/90°/120° |
15°/30°/60°/90°/120° |
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
Body Color |
Black |
Black |
Black |
Black |
Product certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
Warranty |
5 years |
5 years |
5 years |
5 years |
Lead time:
Quantity(Pieces) |
Sample |
1-500 |
500-2000 |
2001-10000 |
>10000 |
Time(Days) |
Inventory |
7 |
7-10 |
15 |
15-20 |
3.Product Feature And Application of the 300w led flood lighting:
LED Flood Lights are widely used in billboard, buildings,corridor, landscape, show window, garage, supermarket,squares, stadium, tunnel, high mast, tower crane, stadium, street, highway, square,billboard, exhibition hall,parking lot, tennis court,gymnasium,park,garden,building facade,any indoor or outdoor areas.

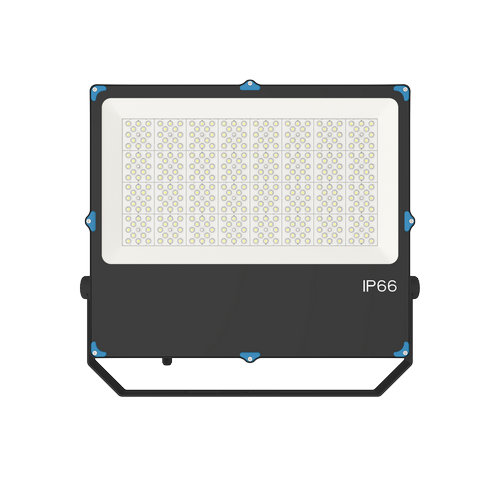

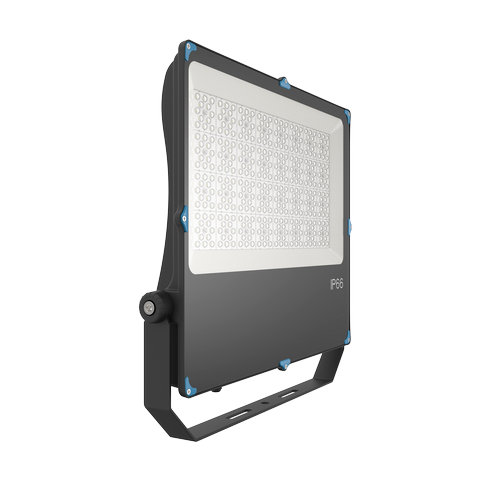

4. Product Details of the 300w LED flood lights:
Item No.: FL7300
Product Model: LM-FLG503P300Y07-WW/NW/CW
Power (W): 300 Watts
Size(mm): 503*545*64mm
Input Voltage(V): AC100-277V 50/60Hz
Color(CCT): 3000K/4000K/5000K/6000K
Luminous Flux: 45000Lm
LED Quantity: 384 Pcs
Led Type: Lumileds 3030
Beam Angle: 15°/30°/60°/90°/120°
IP Grade: IP66
Operating Temperature: -40-60℃
CRI: >80Ra
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years
5. Product Package and Installation of the led flood lights.
6. Deliver,Shipping And Serving of the 300w outdoor LED flood lights
Our led flood light has strong packaging design, the product will not be worn or broken during transportation, which can ensure the product reach your hand safely.
1) Our quality control (4 times 100% checking and 24 hours aging)
1.Raw material 100% check before production.
2.order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing.
2) Our service:
1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.
2.Well-trained and experienced staffs to answer all your inquiries in fluent English.
3.We accept “support” OEM&ODM orders
4.Distributorship is offered for your unique design and some our current models.
5.Protection of your sales are ideas of design and all your private information.
3) Warranty terms:
1/1 replacement of defects within the warranty period.
7.FAQ
Q: Where is your factory?
A: BaoAn,ShenZhenCity Guangdong Province.
Q: What kind of certificate you have?
A: All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3-5 working days if asking for our regular items.
Q:What is your lead time for the mass products such as 5000 units per item?
A: General speaking, about 35 days after getting down payment and confirmation about the samples.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have 14 years of experience in foreign trade.
Q:What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting.
(led track light, led panel light, led strip, led linear light, led high bay, led floodlight, led street light etc)
Q:Your factory or trading company?
A:We are a factory, we provide OEM services.
